Ford Blend Door Actuator Reset: Why and How to Do It

Automotive Repair / By

Ford’s climate control systems rely on a small but crucial component called the blend door actuator. When this part fails, you might end up with a cabin that won’t heat up, won’t cool down, or makes annoying clicking noises behind the dashboard. In this comprehensive guide, we’ll explain what a blend door actuator does and why it’s important, how to diagnose a bad actuator, how to perform a blend door actuator reset, and step-by-step instructions to replace it on common Ford models like the F-150, Edge, and Explorer. We’ll also include a handy diagram of actuator locations by model year, troubleshooting tips for tricky situations, and clear DIY steps – all in a friendly, accessible tone for the average Ford owner. Let’s get your Ford’s HVAC system back to blowing just the way you want it!

Need tools for your project? Toolbox, a tool rental marketplace, might be worth a look.

A typical Ford blend door actuator. This small plastic box contains an electric motor and gears that adjust the blend door in your HVAC system, controlling the mix of hot and cold air.

Quick Navigation:

Symptoms of a Bad Blend Door Actuator (How to Tell if Yours is Faulty)

How do you know if your blend door actuator is the culprit behind your Ford’s heating or AC issues? There are a few telltale signs to look (and listen) for. The most common symptoms of a bad blend door actuator include strange noises from behind the dashboard and incorrect or inconsistent cabin temperatures. Here’s what DIYers should watch out for:

  • Audible Clicking or Knocking: One of the first signs is often a repetitive clicking or knocking sound coming from the dash when you start the car or adjust the climate control. Many Ford owners are all too familiar with this sound – it’s usually the plastic gears inside the actuator slipping or misaligning. The noise may be loud or faint, but it’s a constant tick-tick-tick whenever the actuator moves. It often comes from the area where your HVAC controls or glove box are, since that’s where the actuator motor lives.

  • Inconsistent or Wrong Temperature: A failing blend door actuator can also cause temperature fluctuations or the wrong temperature output. For example, you might set your AC to cold but still get hot air (or vice versa) no matter how much you turn the dial. In a healthy system, when you request cold air you should get cold air – if you’re blasting “Max A/C” but the vents blow hot, it’s a strong indication the blend door isn’t moving to direct cold air, often due to a bad actuator. In some cases the temperature might change erratically on its own, swinging from hot to cold, which happens when the actuator only intermittently controls the door.

  • Irregular Airflow or Vent Behavior: Another symptom is weird airflow behavior. You might notice air only blows from certain vents or the airflow is weak and inconsistent even at high fan settings. If the blend door is stuck or twitching because the actuator is failing, it can divert air unevenly. For instance, in some cases the air might alternate between floor/defrost vents unexpectedly or you get inconsistent airflow from the vents as the door moves back and forth on its own. (Note: lack of airflow could also be a blower motor issue, but if the blower works and you still have airflow problems, the blend or mode door actuator could be to blame.)

  • Other Unusual Noises: Aside from clicking, you might hear a faint whirring, droning, or squeaking noise when the actuator operates. These sounds can occur when the actuator’s motor is straining or the internal gears are rubbing incorrectly. The noise typically comes from the center of the dash and may get louder when you change the temperature or turn the AC/heat on.

If you notice one or more of these symptoms in your Ford, there’s a good chance the blend door actuator is faulty. The table below summarizes common symptoms and what they mean:

Symptom Likely Cause
Repetitive clicking or knocking from dashboard area Stripped or slipping gears inside the blend door actuator. The actuator is trying to move the door but can’t complete its travel, causing a tick-tick-tick sound.
Inconsistent airflow (air blows weakly or switches vents on its own) Blend door moving erratically due to a failing actuator. The door might be see-sawing between positions, diverting air unpredictably.
Temperature changes or stuck on one temperature (e.g. only hot or only cold air) Blend door isn’t adjusting to mix hot/cold air because the actuator failed. You get the wrong air temperature or random hot/cold swings.
No response to temperature knob (air stays same temperature) Blend door actuator motor is completely inoperative or the door is jammed. The HVAC control’s signals aren’t moving the door at all.
Droning or squeaking motor sound in dash Worn-out blend door actuator motor or gears making noise as they struggle to move the door. Often precedes or accompanies clicking.

Most of these issues are annoying but not dangerous – you can still drive your Ford with a bad blend door actuator. However, it will be uncomfortable (imagine being stuck with full heat in summer or no defrost in winter). So you’ll want to fix it as soon as possible for the sake of comfort and convenience.

Pro Tip: A faulty blend door actuator typically affects cabin comfort (temperature and airflow) but doesn’t impact engine or driving performance. This means if you hear clicking or experience lost temperature control, you can drive the vehicle safely to a repair location. Just don’t ignore it for too long – the problem won’t fix itself, and the noise might drive you crazy!

Now that you have an idea of what a bad actuator looks and sounds like, let’s move on to what you can do about it. Sometimes a full replacement isn’t immediately required – in some cases, a reset or calibration can get your blend door working again. We’ll cover the reset procedure next.

How to Reset a Ford Blend Door Actuator

Before grabbing your tools and a new part, you might be wondering: is there a way to reset or recalibrate the blend door actuator? Many modern Ford vehicles allow the HVAC control module to re-learn the door positions through a reset process. This can cure issues in cases where the actuator is not physically broken but just “lost” its calibration.

First off, there is no dedicated “reset button” on a Ford blend door actuator – despite some confusing search results, you won’t find a magical reset switch to press. Instead, resetting involves an electronic calibration procedure. Essentially, you’ll be cutting power to the HVAC system and then re-powering it so that the climate control module cycles all the blend doors to their limits, recalibrating their positions.

Here are two common methods to reset a Ford blend door actuator:

  1. Battery Disconnect Method: This is a straightforward way to force a reset. With the vehicle ignition off, disconnect the car battery (remove the negative cable, then positive). While disconnected, it can help to tap the brake pedal or turn on headlights briefly to drain any residual power. Wait about 10–15 minutes with the battery unplugged. Then reconnect the battery (positive first, then negative). Start the vehicle, but do not touch the climate controls for at least one to two minutes. In many cases, you’ll hear the blend door actuator cycling during this time – the system is recalibrating itself. After a couple of minutes, try adjusting your temperature and see if the actuator responded. (This method essentially reboots the HVAC control module. Ford’s own workshop guides note that when power is restored, the module will run a self-test and door cycling routine.)

  2. HVAC Fuse Pull Method: If you don’t want to disconnect the entire battery, you can pull the fuse that powers the climate control module or actuator. Locate the HVAC fuse or AC fuse for your vehicle (consult your owner’s manual fuse diagram; often it’s in the interior fuse panel). With the ignition off, remove the HVAC fuse. Wait about 30 seconds to a minute. Then reinsert the fuse. Now turn the ignition to the ON position (engine not running) and again, do not touch any climate buttons. Wait about 1-2 minutes. The actuator should cycle and recalibrate during this period. Afterward, turn the ignition off and back on, and test the HVAC controls for proper operation.

If the actuator was stuck due to an electrical glitch or lost calibration, these reset methods can often bring it back to life. For example, some Ford Explorer owners have reported that disconnecting the battery for a few minutes reset their malfunctioning blend door and restored normal AC/heat distribution. Ford’s documentation also notes that certain actuators perform a self-calibration cycle at each key-on, so a power reset basically forces a fresh calibration sequence.

Note: If you have dual-zone climate control (separate driver and passenger temperature settings), there may be multiple blend door actuators to reset – one for each side. The reset procedures above usually recalibrate all actuators at once. Also, if you hear the actuator clicking even after a reset, it likely means the part is physically failing and needs replacement.

When Resetting Won’t Help: A reset won’t fix mechanical problems. If the plastic gears inside the actuator are broken or the motor is burnt out, no amount of battery trickery will solve the issue. In such cases, the actuator must be replaced. In the next sections, we’ll walk through how to replace the blend door actuator on some popular Ford models.

(At this point, if you already know you need a new actuator, feel free to skip ahead to the replacement guide. And if you need a quality replacement part, you can find OEM-fit Ford blend door actuators at ZNO – an affiliate source for automotive parts. Having the new part in hand before you tear things apart is always a good idea!)

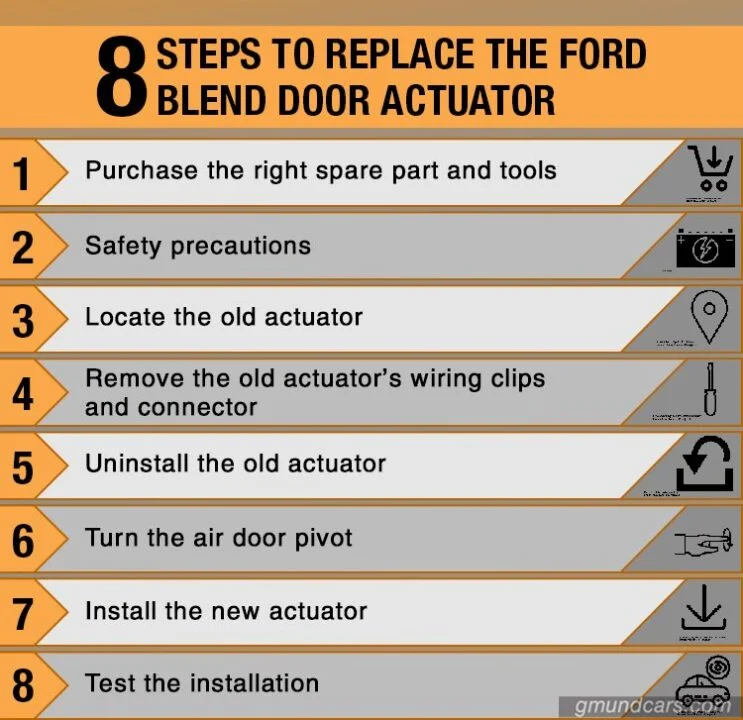

Ford Blend Door Actuator Replacement Guide

Replacing a blend door actuator is a doable DIY job for many Ford owners with basic tools. The difficulty varies by model – some actuators are easy to reach behind the glove box, while others are buried behind the dash. Below, we’ll cover step-by-step how to replace the actuator on a 2003 Ford F-150, a 2015 Ford Edge, and a 2011-2019 Ford Explorer as examples. These cover common scenarios: an older truck, a modern crossover, and an SUV. Even if your exact model/year isn’t listed, the process will be similar for many Ford vehicles (we’ll note differences where applicable).

Before you begin, gather the needed tools and parts: Typically a 1/4” drive ratchet, extension, and a 7mm or 8mm socket will remove most Ford actuator mounting screws (some use 5/16” or 8mm head screws). A small screwdriver may help disconnect the wiring plug. It’s also wise to have a flashlight and maybe a swivel joint for hard-to-reach screws. And of course, have your replacement blend door actuator ready – double-check it’s the correct part number for your vehicle. (For reference, Ford OEM actuators are often labeled with part numbers like 19E616, but many aftermarket brands like Dorman make reliable replacements too.)

Safety Tip: Always turn off the ignition and disconnect the battery before working on any electrical components under the dash. This prevents accidental shorts and also protects you if you’re working near any airbags or wiring. In some models (like newer Edges), you may be near the knee airbag module, so disabling the power is extra important.

How to Replace a Blend Door Actuator on a 2003 F-150

The 1997–2003 Ford F-150 (10th generation) is a popular truck that often experiences blend door actuator failures as it ages. In these models, the actuator is located under the dash, roughly in the center console area near the transmission tunnel. Fortunately, it’s accessible without completely removing the dash – making this a relatively straightforward job for DIYers.

Steps to replace the blend door actuator on a 1997-2003 F-150:

  1. Disconnect the battery: As mentioned, always start by disconnecting the negative battery cable. This protects you and the electronics while you work.

  2. Remove lower dash panels (if needed): On these F-150s, you’ll likely need to remove a trim panel on the transmission tunnel or lower center dash to expose the HVAC “black box.” The blend door actuator sits on the bottom of the HVAC box, slightly toward the passenger side (often you’ll spot a small white box – that’s the actuator’s body). In some trims, there’s a cosmetic plastic cover on the center floor hump that needs to come off. This may be held in with a couple of screws or snap-clips – remove those and pull the panel out to gain access.

  3. Locate the actuator: Once the panel is out, you should see the actuator attached to the HVAC housing. It’s a small plastic unit (probably black or white in color) with an electrical connector. On 97-03 F-150, it’s often mounted with 3 screws (most likely 8mm hex head or phillips). It will be near the bottom of the heater box. Identify the correct part – make sure you’re looking at the blend door actuator and not a different actuator (some trucks have separate mode door or recirculation door actuators in other locations).

  4. Unplug the wiring connector: Press the tab on the actuator’s electrical plug and pull it out. This can be a bit awkward due to tight space – a flat screwdriver can help depress a stubborn tab. Tip: Take a quick look at the connector for any corrosion or loose pins, though this is rare.

  5. Remove the mounting screws: Use your ratchet and appropriate socket (or a Torx driver on some models) to remove the screws holding the actuator in place. There are typically three screws. They might be slightly hard to reach – an extension or universal joint can help. Support the actuator with your free hand so it doesn’t fall once the screws are out.

  6. Detach the old actuator: Once the screws are out, the actuator should come free. You may need to wiggle it a little to unseat it from the blend door lever. Pay attention to how it’s oriented and how the actuator’s output shaft engages the blend door. (In some cases, the actuator has a D-shaped or slotted shaft that fits into the blend door – make note of this for installation.)

  7. Test the blend door by hand (optional): With the actuator removed, you can reach in and gently move the blend door shaft by hand. It should pivot smoothly (you’ll feel the door inside moving). If it’s jammed or very difficult to move, there could be a problem with the door itself – but usually it will move freely. Don’t force it; just ensure it isn’t physically broken or stuck. This also puts the door in a neutral position for the new actuator.

  8. Install the new actuator: Compare the new actuator to the old one – the splines or shaft shape should match. Sometimes you might need to rotate the new actuator’s shaft to line up with the blend door; you can do this by lightly turning it with your fingers. Place the new actuator in position, aligning it with the door lever. Reinstall the mounting screws and tighten them snugly (do not over-tighten; it’s just plastic).

  9. Reconnect the wiring harness: Plug the electrical connector into the new actuator until it clicks securely.

  10. Reassemble removed panels: Put back any dash panels or covers you removed, and fasten any screws or clips.

  11. Reconnect battery and test: Reattach the battery cable. Start the truck and run the climate control through its paces. Turn from cold to hot, cycle through vents, etc. The new actuator should smoothly blend the temperature without noises or issues. If it was a dual-zone system (some later F-150s), test both sides.

If everything is working, congratulations – you’ve fixed the problem for about the cost of the part and your time! This process typically takes an hour or less for a 97-03 F-150. (Be glad – on some later models it’s more involved. For example, 2009+ F-150s have multiple blend door actuators – two on the driver’s side (upper and lower) and another on the passenger side. The procedure is similar but you have to identify which one is bad, and access can differ slightly by location.)

Recommended Part: When replacing the actuator, many owners opt for the Dorman 604-216 or the Motorcraft YH-** series which are designed for these year F-150s. Ensure you get the correct part number for your year/AC system. You can find a compatible Ford F-150 blend door actuator through ZNO, which offers OEM-quality replacements for Ford trucks – using a reliable part will save you from doing this job twice.

2015 Ford Edge Blend Door Actuator Location & Replacement

The Ford Edge (especially the second generation, 2015–2018) presents a different challenge. In vehicles like the 2015 Ford Edge, there may be more than one actuator – and accessing them can be a bit trickier due to tighter interior packaging. The Edge (and its Lincoln MKX sibling) often have dual-zone climate control, meaning two blend door actuators (one for driver side, one for passenger side). Let’s focus on the driver’s side temperature blend door actuator on a 2015 Edge, as that’s a commonly searched one.

Location: In the 2015 Edge, the driver’s side blend actuator is buried behind the dash near the steering column/knee area. In fact, Ford’s service info indicates you must remove the driver’s knee airbag module to get to this actuator. It sits on the HVAC air distribution case, roughly above the accelerator pedal area against the firewall. The passenger side actuator (if applicable) is on the opposite side of the HVAC box, accessible behind the glove box or center stack. For this example, we’ll tackle the driver side.

Steps to replace the blend door actuator on a 2015 Ford Edge (driver side):

  1. Disconnect battery & wait: Since you’ll be near the airbag, disconnect the battery and wait a full 5-10 minutes before proceeding (this allows capacitors in the airbag system to discharge). Safety first!

  2. Remove lower dash panels: Take off the driver’s side lower dash trim panel (the one above your knees). There are a couple of screws to remove and some clips. Lowering the steering column tilt can help gain room. If equipped, also remove the knee airbag module per Ford’s instructions (usually a few bolts and an electrical connector – handle it carefully).

  3. Locate the actuator: With the panels out, look up behind the center dash area on the driver’s side. You should see the blend door actuator on the HVAC case, likely held by three screws and with an electrical connector. It might be mounted next to some ducting. Space will be cramped – prepare for an awkward angle.

  4. Remove steering column trim (if needed): In some Edge models, you might also remove the steering column trim panel (two screws and some clips) to gain better access from below. This can provide a clearer path to the actuator screws.

  5. Unplug the actuator connector: Find the wire harness going into the actuator and disconnect it. This might require reaching up with one hand and pressing the connector tab. There isn’t a lot of slack, so take your time.

  6. Remove mounting screws: Using a small ratchet with an extension, remove the three screws securing the actuator. In tight spots like this, an 8mm ratcheting wrench or a mini socket can be a lifesaver. You may only be able to turn each screw a quarter-turn at a time due to clearance.

  7. Extract the old actuator: Once the screws are out, maneuver the actuator out of its spot. There will be a lever or drive coupler that fits into the blend door – make sure that comes out without snagging. Sometimes rotating the actuator slightly helps to free it.

  8. Install the new actuator: Before installation, ensure the new part’s drive is oriented the same as the old one (you may need to energize it briefly or adjust by hand to match the door position). Place it into position, aligning the shaft with the blend door linkage. Reinstall the screws, tightening them securely. This step is fiddly – patience is key.

  9. Reconnect the wiring: Plug the electrical connector into the new actuator firmly.

  10. Reinstall removed components: Bolt the knee airbag back (torque to spec if you have it, since overtightening can damage the bracket or threads), reconnect its electrical connector, and reinstall any trim panels and the steering column panel.

  11. Reconnect battery and test: Reattach the battery. Turn on the ignition and run a calibration/reset (as described earlier) by not touching the HVAC controls for a minute. Then test the climate control: adjust driver and passenger temperatures (if dual zone) and verify that both sides respond correctly, and that no clicking noises are present.

Replacing the actuator on a Ford Edge can take a bit longer (possibly 1-2 hours) due to the cramped workspace. The design changed in 2015+, so these steps are specific to that generation. Earlier first-gen Edges (2007-2014) have a similar process; for example, a 2012 Edge’s driver side actuator is also accessed by removing the steering column trim and knee panel. The big takeaway is to be patient working under the dash.

Location Note: If you’re dealing with the passenger side blend actuator on an Edge (especially if you have heat only on one side), that one is usually easier – often accessed by removing the glove box door and looking on top or side of the heater box. On many Ford vehicles (Edge included), the passenger blend actuator is right behind the glove box compartment. Simply drop the glove box (pinch the sides to swing it down) and you may see the actuator on the top of the HVAC case on the passenger side.

Replacement Part Tip: Use a good quality replacement to avoid repeat failures. The Edge’s actuators are known to sometimes fail around 40-60k miles. Motorcraft (Ford OEM) replacements are ideal, but brands like Dorman or Standard Motor Products offer affordable aftermarket units. Ensure you get the correct one (driver and passenger actuators may have different part numbers). You can find the right blend door actuator for the Ford Edge via ZNO – they have an online catalog for Ford HVAC parts, which can be very handy for confirming the fit.

Ford Explorer Blend Door Actuator Replacement (5th Generation)

Ford Explorers, especially the 2011-2019 fifth-generation models, also have their share of blend door actuator woes. Many Explorer owners experience the classic “no heat on one side” or the infamous dash clicking from a bad actuator. The Explorer with dual-zone climate has two blend actuators (left and right), similar to the Edge. We’ll describe the procedure for the passenger side blend door actuator on a 2011-2019 Explorer, which is a common failure point (often causing no heat on the passenger side).

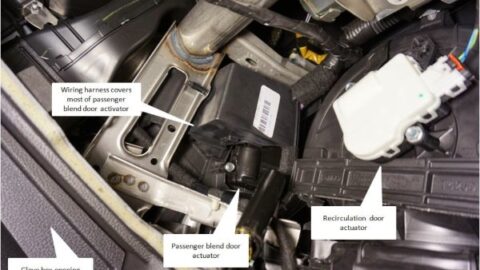

Location: In the 5th-gen Explorer, the passenger blend door actuator is located behind the glove box, on top of the HVAC air plenum toward the center. It’s rather difficult to see and reach – Ford positioned it high up, almost directly above the blower motor housing. Getting to it without removing the entire dash is challenging but doable with the right tools. You’ll be working in the passenger footwell area.

Steps to replace the blend door actuator on a 2011-2019 Ford Explorer (passenger side):

  1. Disconnect battery: As always, cut power to avoid any shorts (especially since the Explorer has many electronic modules).

  2. Drop the glove box: Open the glove box and empty its contents. Push in the sides of the glove box door so that the stops disengage, allowing the glove box to swing all the way down (or remove the glove box door entirely by releasing the hinge pins, if needed). This gives you a view of the HVAC internals behind the dash.

  3. Locate the actuator: Peer up into the space behind the glove box, toward the center console side. The blend door actuator is a small black box with a 2-wire connector, sitting on top of a white air duct box. It’s mounted with screws from below/behind, which makes them hard to reach. You might just barely see one screw and the connector. Tip: Use a mirror or your phone camera to get a better look at the actuator’s position.

  4. Remove kick panel (if needed): You may gain a bit more access by removing the passenger side kick panel or side trim and possibly the lower hush panel under the glove box. This can open up more space to get your hand in.

  5. Unplug the connector: Reach in and unplug the actuator’s electrical connector. This is largely by feel, as it’s tough to see. It may help to have one arm coming from beneath the glove box area and another through the glove box opening.

  6. Remove mounting screws: Here’s the tricky part – the screws (usually two or three) are in tight spots. An 8mm ratchet wrench or a small socket with a universal joint will be your best friend. One DIY expert noted that using an open-end 8mm wrench and patiently turning each screw a tiny bit at a time is the only way without removing the dash. Expect this to be slow going. Remove all screws holding the actuator (likely 2 screws on the Explorer’s actuator).

  7. Pull out the actuator: Once unscrewed, the actuator can be wiggled out of its spot. You might have to maneuver around wiring harnesses or ducts. Take care not to drop it into the abyss of the dash (attach a string or just keep a good grip).

  8. Install the new actuator: This is the reverse of removal, but aligning the new actuator can be tricky. Make sure the blend door shaft (sometimes a D-shaped post) is aligned with the actuator drive. You may need to gently turn the door post with pliers to match the position of the new actuator. Once aligned, set the new actuator in place. Start the screws by hand if possible (to avoid cross-threading) and then tighten them. Again, patience is key due to limited space.

  9. Reconnect the wiring: Plug the connector back into the actuator securely. You should hear/feel it click in.

  10. Reassemble and test: Snap the glove box back into position and replace any panels you removed. Reconnect the battery. Now test the climate control – turn the temperature on both driver and passenger sides from cold to hot. If the passenger side now responds correctly (e.g. you get heat when you demand heat), then the new actuator is doing its job. No more annoying clicks and no more one-sided climate issues!

Replacing a blend actuator on the Explorer can easily take 1-2 hours given the awkward angles. In some cases, DIYers might decide to remove the front passenger seat to give themselves more room to lie on their back under the dash – that’s optional but can make the task more comfortable. Also note that earlier Explorers (2002-2010) had their blend actuators in different locations (often on the top of the plenum near the center – accessible by removing the radio or upper dash panels). So always double-check for your specific model/year.

One more thing: If you replace the actuator and still have no heat, the blend door itself might be broken (a known issue on some older Explorers where the plastic door hinge breaks). That’s a much bigger job usually requiring plenum box removal or cutting into the box. Thankfully, the 2011+ Explorers have fewer door breakage issues – it’s usually just the actuator motor that fails.

Parting advice for Explorer: Make sure you get the correct actuator – Ford uses different part numbers for the left vs right side on dual climate models. A quick way to get the right part is by searching your vehicle (year, model) on ZNO or another parts source to find the exact passenger or driver side actuator. That way you won’t tear apart the dash with the wrong part in hand.

Blend Door Actuator Locations by Ford Model (Diagram)

To give you a clearer picture of where blend door actuators are located, here’s a text-based diagram/table listing several Ford models and the typical location of their blend door actuator(s). Use this as a reference when planning your repair:

Ford Model Model Years Blend Door Actuator Location
F-150 Pickup (10th Gen) 1997–2003 Under dash, center transmission tunnel area. Mounted on bottom of HVAC box (access through center floor console area behind trim panel).
F-150 Pickup (12th Gen, with Dual Zone) 2009–2014 Multiple actuators: typically one on passenger side (behind glove box) for passenger temp, and two on driver side (upper & lower) for driver temp and mode control. Driver’s side actuators are near the gas pedal area on the HVAC box.
Ford Edge (1st Gen) 2007–2014 Dual zone models have two: one on driver side (behind dash, above accelerator pedal) and one on passenger side (behind glove box on HVAC case). Requires removal of trim panels to access driver side. Single zone models have one actuator, usually on passenger side.
Ford Edge (2nd Gen) 2015–2020 Driver side actuator behind lower dash/kick panel (near steering column, knee airbag must be removed for access). Passenger side actuator behind glove box on HVAC housing.
Ford Explorer (4th Gen) 2006–2010 On top of HVAC plenum, center of dash (accessible by removing dash top or radio bezel). Often requires reaching from glove box area with an 8mm wrench due to tight quarters.
Ford Explorer (5th Gen) 2011–2019 Dual zone actuators: Passenger side on top of HVAC box behind glove box (difficult access, need to drop glove box). Driver side on left side of HVAC box above accelerator (accessible by removing lower dash trim).
Ford Ranger (3rd Gen) 1998–2011 Mounted on top of the heater box behind the glove box door. On 1995-2001 models, drop glove box to see actuator on top of plenum. Later Rangers similar location. (2019+ Ranger uses an updated HVAC, driver side actuator near center stack).
Ford Taurus / Fusion 2000s–2010s sedans Generally behind the center dash stack. Many have actuator above driver’s footwell (for driver blend) and another behind glove box (passenger blend). Mode door actuator often on side of HVAC case.
Ford Expedition 2003–2017 Similar to F-150 of same era. 2003-2006 under dash center/right side. Newer models (2007+) behind glove box for one zone, and driver side dash for second zone if equipped. Rear auxiliary unit (if SUV has rear climate) has its own actuator in the rear quarter panel.
Ford Mustang (S197/S550) 2005–2023 Behind center dashboard. For example, 2015+ Mustang has multiple actuators for driver/passenger; one is behind the radio center stack, another accessible from driver footwell. In general, remove the center console panels to access.

Table: Common Blend Door Actuator locations in various Ford vehicles. “HVAC box” refers to the main plastic air conditioning/heater unit behind the dash. Many models have multiple actuators (for dual-zone temperature, or separate mode/recirculation functions). Always verify the exact location for your year, as designs can change.

As you can see, the actuator is almost always behind the dash attached to the climate control case. In trucks like the F-150, it’s often low and central; in smaller vehicles and SUVs, it might be higher up or off to one side. Knowing the location saves you time – you’ll have a better idea which panels to remove and where to reach. If you’re unsure, a repair manual or forum specific to your vehicle can be a big help to pinpoint the actuator’s exact spot.

Troubleshooting Tips and Tricks

So you’ve replaced or reset your Ford’s blend door actuator, but something still isn’t right? Let’s go over a few troubleshooting scenarios and tips:

  • New Actuator, Still No Change: If you installed a new actuator and the temperature problem persists, consider these possibilities: (1) The blend door itself is broken or stuck. This is common in some older models – the door hinge can crack, meaning the actuator turns but the door doesn’t move. You might hear the new actuator motor whir briefly then stop, with no effect. (2) There’s an issue with the HVAC control module or wiring. Check the fuse for the climate control, and ensure the actuator’s connector is fully seated. Rarely, a faulty climate control panel (or electronic Automatic Temperature Control unit) can fail to send the proper signals. Running a self-test (if your vehicle has one built-in) could reveal HVAC error codes. (3) You replaced the wrong actuator – remember, vehicles with multiple actuators might fool you. For instance, on a dual-zone system, if the passenger side stays cold, make sure you changed the passenger blend actuator, not the driver’s side. Ford trucks can have up to 4 actuators (blend, mode, recirculation, etc.), so proper diagnosis is key.

  • Actuator Reset Doesn’t Work: If you tried the blend door actuator reset procedure and it didn’t resolve the issue, the actuator likely has a physical problem. However, ensure you performed the steps correctly: the battery/fuse method should be done with controls off and sufficient time given for recalibration. If it still clicks afterward, the gears are likely broken. In some Ford models with automatic climate control, you can also initiate a diagnostic mode via the control panel (for example, pressing specific buttons simultaneously) which can recalibrate doors – check your owner’s manual or online forums for model-specific tricks. But generally, a stubborn problem means the part is bad.

  • Intermittent Problem (Works sometimes, then stops): This could be an early sign of actuator failure – perhaps a cracked gear that sometimes catches and sometimes slips. It might also indicate an electrical intermittent – for example, a loose connector or a chafed wire that cuts power sporadically. Inspect the wiring harness connected to the actuator. Make sure no pins are backing out of the connector. Also consider temperature: some actuators might work when cold but fail when warmed up (or vice versa). If the problem is intermittent, you might delay replacement, but know it will likely get worse over time.

  • Multiple Actuators Clicking: If you hear multiple distinct clicking noises from different areas, more than one actuator could be bad (especially in an older vehicle). For instance, it’s not unheard of on a 2000s Expedition or Navigator to have both a blend door actuator and a mode door actuator failing around the same time. The fix, unfortunately, is to replace each faulty unit as needed. Prioritize the one affecting your comfort the most (blend door if you have no heat, mode door if you can’t defrost, etc.).

  • Blend vs. Mode vs. Recirculation Actuators: Make sure you’re troubleshooting the right part. The “blend” actuator controls hot/cold mix. The “mode” actuator directs air to floor/dash/defrost vents. The “recirculation” actuator opens or closes the fresh air/recirc flap. A clicking noise in the dash could be any of these. A quick diagnostic: if the clicking occurs when changing temperature, it’s likely the blend door actuator. If it happens when changing vent settings (face to floor, etc.), it could be the mode door actuator. If it happens right after you start the car or press the recirculate button, it might be the recirculation door actuator. Knowing which function is affected will guide your troubleshooting. Ford designs often use similar actuators for all three, but their locations differ.

  • Calibrate after installation: We mentioned reset procedures earlier – it’s a good practice to let the vehicle recalibrate after installing a new actuator. Many Ford techs will cycle the ignition on, wait, then cycle off, then test the AC controls to ensure the module recognizes the new actuator limits. Some modern Fords store the actuator end-stop positions in memory; installing a new one with different zero points could cause issues until recalibrated. So don’t skip that step.

  • HVAC Module Self-Test: Some Ford vehicles with electronic climate control have a self-diagnostic mode. For example, certain Explorers and Expeditions allow you to press a combination like Off + Floor + Auto (then release and press Auto again) to enter a test mode that runs the actuators and reports trouble codes on the climate control display. If your car has this feature, it can be extremely useful – it might output a code for “blend door actuator fault” or similar, confirming the issue. Check online for “[Your model] EATC self test” to see if this exists.

Remember, proper Ford blend door troubleshooting involves verifying that the actuator is indeed the source of the problem. It’s okay to remove the actuator and test it before buying a new one: plug the actuator back into the harness while it’s unbolted, and change the temperature knob – you should see the actuator’s shaft turning (you can do this with the ignition on, but be careful of moving parts). If it doesn’t move at all, it’s dead. If it moves but the blend door doesn’t (or you still hear noise), the door may be jammed or broken.

Lastly, if you’re stumped, don’t hesitate to consult the Ford community forums or repair databases. Blend door issues are extremely common, and chances are someone has posted a walkthrough or a tip for your exact vehicle. We’ve cited a few in this guide, and a little more searching can yield model-specific tricks (for example, cutting an access hole in a housing instead of removing the whole dash – an approach some have used on older trucks to change the door itself).

Conclusion & Next Steps

Dealing with a faulty blend door actuator can be frustrating, but with the information in this guide, you should be well-equipped to diagnose the issue, reset the system if needed, and replace the bad actuator on your Ford – whether it’s a trusty F-150, a family Explorer, a compact Ranger, or any other model. By restoring your HVAC blend control, you’ll get back the ability to properly heat and cool your cabin, silence the annoying dash clicks, and generally improve your driving comfort.

As a DIY enthusiast, you also likely saved a good chunk of money. A dealership might charge a few hundred dollars (or more) for this repair, especially if dash disassembly is involved. By following these steps, you mostly paid for just the part. Speaking of parts – if you haven’t sourced a replacement yet, consider checking out ZNO for high-quality Ford blend door actuators. They offer direct-fit parts for all the Ford models discussed, often at a lower cost than the dealer. Using our affiliate link helps support detailed guides like this one, and you get the part you need with the proper specifications.

Before we wrap up, here are a few quick final tips: keep any old actuator you remove (unless it’s completely shattered internally) – sometimes the gear can be repositioned and used as a temporary fix in a pinch. Always double-check that you didn’t disturb any other wiring or vacuum lines under the dash while working (for example, make sure the glove box light connector, if any, is reconnected, and no loose screws are left behind). And if your vehicle has more than one actuator, consider whether it’s worth replacing both sides at the same time. Often if one went bad, the other might not be far behind.

We hope this extensive guide has helped you solve your Ford blend door actuator problems. Now you can enjoy a quiet dashboard and the perfect temperature on your next drive. If you found this article useful, feel free to share it with fellow Ford owners or DIYers facing similar climate control gremlins. Happy wrenching, and stay comfortable out there on the road!
