How To Test A Car Ground Wire With A Multimeter

Originally posted on March 10, 2022 @ 9:12 am

(Last Updated On: March 15, 2024)

Should your vehicle refuse to start or if some of its electrical components are not working properly, the root cause may not necessarily be the battery or alternator. On occasion, the problem could stem from the car’s ground wire. It is crucial to address these issues promptly as major car parts could incur damage.

With a multimeter, one can confirm if the problem is the ground wire or not. This article explains how to test a car ground wire with a multimeter. It also suggests some tips on fixing a bad ground wire without visiting a mechanic.

What Is Car Ground Wire?

The ground wire is the electrical circuit’s part of a car that serves primarily as the negative terminal. This wire connects a vehicle’s chassis to the engine block or battery’s negative terminal in many instances.

While this wire may look like a small thing, it plays a very crucial role in the car’s entire electrical system. A loose or bad ground wire can cause a significant problem. Grounding a vehicle is equivalent to installing a ground wire.

Grounding is essential in every vehicle for its electrical systems and components such as ignition, sensors, alternator, stereo, etc. The alternator, responsible for charging the battery, also relies heavily on the ground wire for a complete connection.

When a car’s ground wire is compromised, the ignition system is the first to be affected. Since the starter motor has no clear negative connection, the vehicle may fail or struggle to start.

Alternator and battery-related issues can show up with possible signs like undercharging or low charging output. Other common symptoms include an unusual fuel consumption due to engine misfire, stalling, and a total battery collapse.

Read more: Bad alternator: signs to tell and what to do?

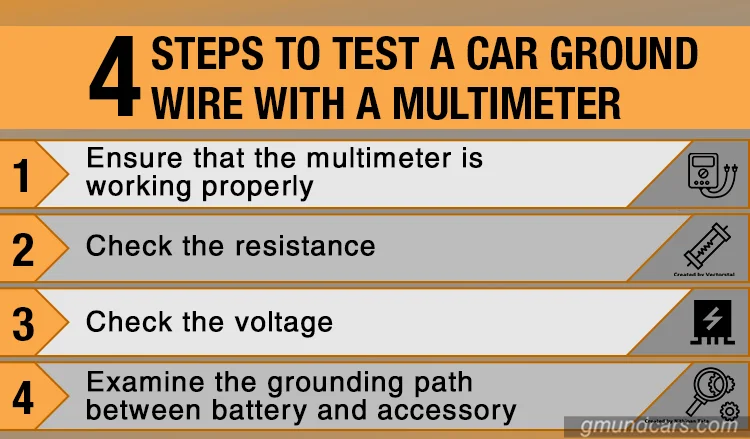

How To Test A Car Ground Wire With A Multimeter

The steps below explain the procedure for testing a car ground wire with a multimeter. This procedure may require a screwdriver, plier, and torchlight.

Knowing how to test a car ground wire help you find an immediate solution for the issue.

Step 1: Ensure that the multimeter is working properly

Before testing a car’s ground wire, ensure that the multimeter is in proper condition. Examine the display and check the test probes carefully. This step is a precaution to prevent false inferences.

Switch on the multimeter and check the display for failing or dead battery signs. Some new multimeters come with battery indicators for convenience.

If the central device works fine, go ahead to check the test probes. Plug the probes, turn the device’s dial to the continuity setting, and connect them. A continuous beep signifies that the probes are alright.

Read more: 5 Best Multimeters for Beginners [2022 Review And Comparison]

Step 2: Check the resistance

After testing the multimeter, the first thing to do is check the resistance of the ground wire. Turn off every accessory in the car, especially power-demanding ones. Switch the multimeter to resistance (Ohms) to test along the wire.

Connect a test probe to the battery’s negative terminal and the other to the ground connection on any accessory (e.g., amplifier). Ideally, the reading should be lower than five ohms to conclude that the ground wire (grounding) is okay.

Alternatively, if the resistance exceeds five ohms, the ground wire is most likely damaged, loose, or disconnected. Note that the lower the resistance is, the stronger the grounding point is.

Step 3: Check the voltage

If the resistance falls below the acceptable limit, perform a voltage check. Turn on some accessories in the car and change the multimeter dial to the voltage setting. Connect the multimeter probes as in the second step.

The appropriate voltage limit (under load) is 0.05 Volts. At any spot where voltage is present (greater than 0.05 Volts), patching the wire with a bonding strap (or wire) or creating an additional grounding point may resolve the problem.

Step 4: Examine the grounding path between battery and accessory

Lastly, if the resistance’s reading in step 2 is higher than 5 ohms, identify the grounding path (wire) and examine it with a multimeter. Put the multimeter in the resistance setting and connect a probe to the battery’s negative stud.

Use the other probe to trace the grounding point inches by inches. At any spot with resistance above 5 ohms, apply a bonding strap (or wire) to bridge the gap.

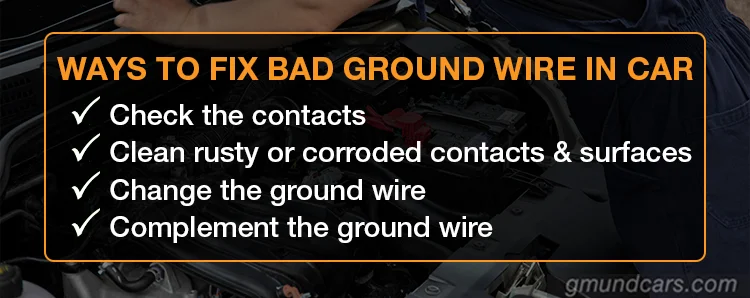

Tips To Fix Bad Ground Wire In Car

Fixing a bad ground wire isn’t very complicated, let’s try these effective tips.

Once the test confirms that the ground wire is bad, consult an engineer or go the DIY way. Regardless, the process of fixing a bad ground wire isn’t very complicated. The following tips explain how to resolve the problem.

Check the contacts: The problem might be open (or partial) connections at either end of the ground wire. Locate the ends of the wire to confirm. If they are loose, a screwdriver or wrench will do. Replace worn-out screws, bolts, and nuts.

Clean rusty or corroded contacts and surfaces: Check the connections and surfaces for signs of rust or corrosion and clean them with a file or sandpaper. Some places to check include wire ends, battery terminals, bolts, nuts, screws, and washers.

Change the ground wire: After identifying the ground wire, check for cuts, tears, or breakage. Get a quality replacement.

Complement the ground wire: The last or quickest fix is to add another ground wire. This option is advisable if the original one is difficult to locate or access for replacement. It is essential to get a good-quality complementary ground wire.

Read more: Bad Ground On Amp Symptoms

FAQs

1. How much does it cost to replace a ground wire in a car?

On average, a ground wire costs around 20 to 80 dollars to replace. However, this depends on the labor costs and car model. A ground wire may cost between 10 and 60 dollars. Please note that replacing the ground wire of a vehicle may wipe off its memory functions.

2. Will a bad ground cause the engine not to start?

Yes. For an engine to come alive, it needs two different wire connections – a positive and a negative. When the ground (negative) is faulty, loose, or disconnected, the starter motor has no reliable return path for current.

3. How many ground wires does a car have?

Ideally, a car has one primary ground wire that connects to the chassis (bodywork) in many vehicles. Hence, chassis is the “common” of a vehicle. Nevertheless, some cars may come with more than one wire to avoid loose connections. In addition, some vehicles may have separate ground wires to the engine block and the chassis.

Conclusion

Efficient grounding is indispensable to a car’s safety and the longevity of its critical systems and components. Over time, the ground wire may deteriorate, or the entire grounding fails to deliver.

Therefore, having a solid knowledge of testing and fixing a car’s ground wire (grounding) is handy. Interestingly, this maintenance procedure can be carried out quickly with a multimeter.

Furthermore, exercise adequate caution when handling wires and circuits to prevent electric shock. Also, be careful not to short a circuit inadvertently.
